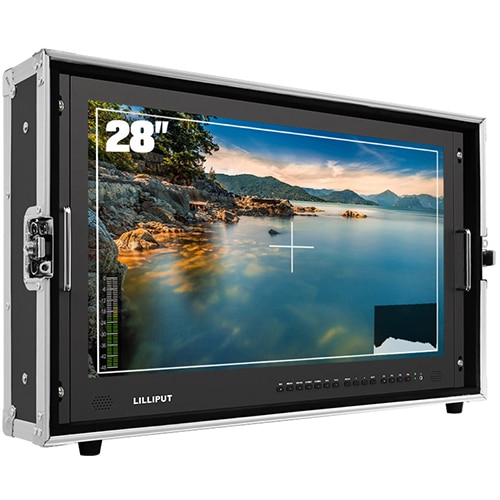

Lilliput 28″ BM280-4KS-VBP Monitor

Lilliput BM280-4KS-VBP is a 4K  Ultra-HD native resolution monitor with 3G-SDI, HDMI 2.0, DVI, VGA, and AV input. The Lilliput BM280 monitor has a 178° ultra-high viewing angle, a high contrast ratio of 1000:1, and a peaking, false color, and a time code option.

This 28-inch monitor is perfect for travel as it fits right into your luggage. This monitor has a 178° ultra-high viewing angle, a high contrast ratio of 1000:1 as well as a peaking, false color, and a time code option.

Features:

• 4K (3840 x 2160) Ultra-HD native resolution
• 28″ perfect size for both suitcase
• HDR, 3D-LUT & Color space
• Peaking, False Color and Time code
• High contrast: 1000:1
• 178° Ultra high viewing angle
• Rich interfaces: 3G-SDI, HDMI 2.0, DVI, VGA, AV input
• Wide voltage: DC12-24V

Specifications:

• Display
• Display Screen: 28″ 8bit
• Physical Resolution: 3840×2160, 4K
• Aspect Ratio: 16:9
• Brightness: 300cd/m²
• Contrast: 1000:1
• Viewing Angle: 170°/160°(H/V)

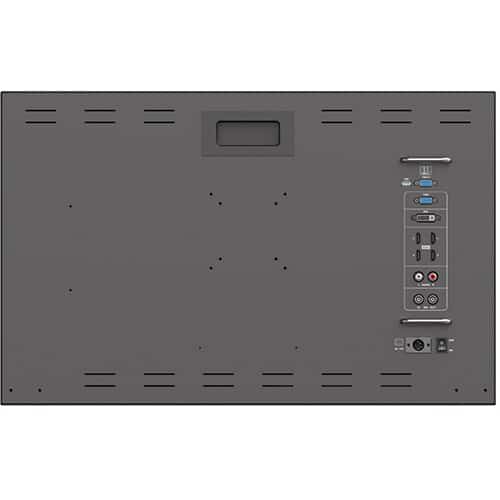

Inputs:

• 3G-SDI: 1
• Wireless HDMI: 1 (optional)
• HDMI: HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz)
• DVI: 1
• VGA: 1
• USB: 1 (3D-LUT)
• Audio: 2 (L/R)
• TALLY: 1

Outputs:

• 3G-SDI: 1
• Audio
• Speaker: 2
• Ear Phone Slot: 1
• Power
• Current: 3.4A (15V)
• Input Voltage: DC 12-24V (XLR)
• Battery Plate: V-mount / Anton Bauer mount
• Power Consumption: ≤51W

Environment

• Operating Temperature: 32 to 140°F
• Storage Temperature: -4 to 140°F
• Dimensions
• Dimension (LxWxD) (without case): 26.38 x 16.73 x 1.77″
• Dimension (LxWxD) (with case): 29.96 x 18.66 x 6.81″
• Weight (without case): 20.72 lbs
• Weight (with case): 46.30 lbs

SDI Format

• SMPTE-125M: 480i (59.94)
• SMPTE-274M: 1080i (60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
• SMPTE-292M: 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
• SMPTE-296M: 720p (60/59.94/50/30/29/25/24/23.98) 720p (60/59.94/50)
• SMPTE-372M: 1080i (29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98)
• SMPTE-425M: 1080p (60/59.94/50)
• ITU-RBT.656: 576i (50)

HDMI Format

• 4K: 4096×2160/ 3840×2160
• Other: 1080p, 1080i, 720p, 720i, 480p
